Async and Parallel R

Building the Open Source Tools

Charlie Gao

Open Source, Posit PBC

Your bootstrap is embarrassingly parallel
So why did twelve workers only give you 2x?

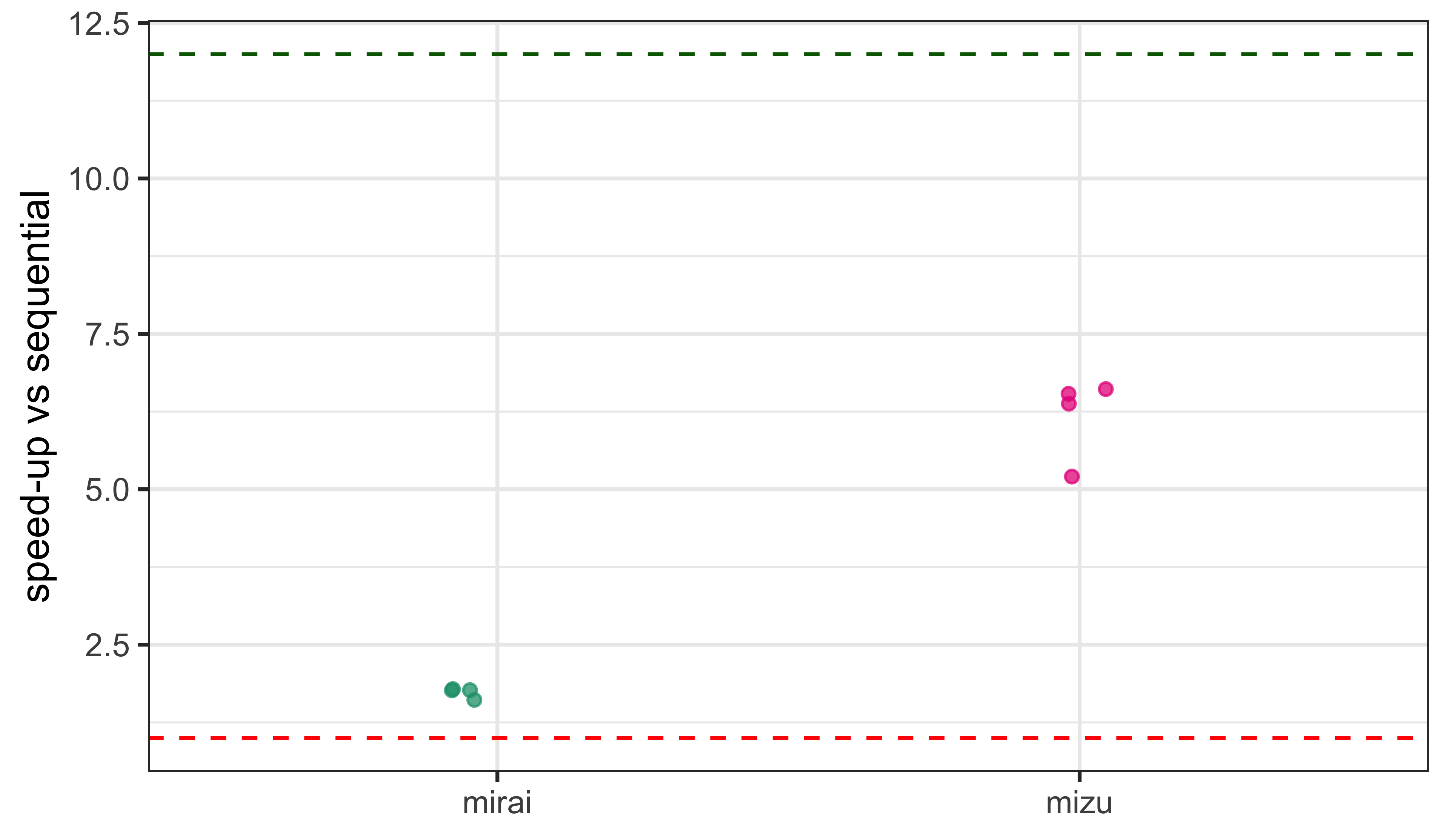

Twelve workers, one bootstrap

Figure 1

Early results · 12 workers, 14-core M4 Pro · R 4.6.1 · sequential lapply() baseline = 1× · both runtimes’ outputs match the sequential run

The evidence: four workloads

Four workflows you already run —
chosen to stress the transport regimes that separate parallel runtimes

Four workloads

Table 1
Workload Tasks Per-task cost Per-task input Shared input Per-task result
A: Bootstrap metrics 5000 ~3 ms 1 bootstrap split (~200 KB) — 4-row tibble
B: Resampled model fits 250 ~45 ms 1 bootstrap split (~1.7 MB) — 2-row tibble
C: Permutation importance 240 ~85 ms 1 bootstrap replicate (~2.8 MB) fitted glm (0.2 MB) 30-row tibble
D: Bootstrap prediction intervals 400 ~90 ms 1 bootstrap split (~3.4 MB) 38 MB portfolio (250k policies) 250k-vector (2 MB)

daemons() + mirai_map()

library(mirai)
daemons(12)

res <- mirai_map(splits, function(split) {
  # fit, score, return a tibble
})[]

A — Overhead-bound: thousands of tiny tasks

# A: yardstick metrics on one bootstrap split
task_metrics <- function(split) {
  require(rsample)
  require(yardstick)
  mtr <- metric_set(rmse, rsq, mae, ccc)
  mtr(analysis(split), y, .pred)
}

5,000 × ~3 ms — at this grain, the per-task transport rivals the compute itself

B — The everyday workflow

# B: parsnip workflow fit on the analysis set, scored out-of-bag
task_fit_glm <- function(split) {
  wf <- workflow() |>
    add_recipe(recipe(class ~ ., data = analysis(split)) |>
                 step_normalize(all_numeric_predictors())) |>
    add_model(logistic_reg() |> set_engine("glm"))

  fitted <- fit(wf, data = analysis(split))
  pred <- bind_cols(predict(fitted, assessment(split), type = "prob"),
                    predict(fitted, assessment(split), type = "class"))
  bind_rows(roc_auc(pred, class, .pred_yes),
            accuracy(pred, class, .pred_class))
}

fit_resamples() on a recipe + logistic regression — 250 × ~45 ms, ~1.7 MB riding inside each split

C — Large payloads, a shared model

# C: one bootstrap replicate of the validation set; permute each
# predictor in turn and record the AUC drop against the pre-fit model
task_permimp <- function(task, model) {
  set.seed(task$seed, kind = "Mersenne-Twister")  # streams comparable across backends
  dat <- analysis(task$split); truth <- dat$y
  base_auc <- roc_auc_vec(truth, predict(model, dat, type = "response"), event_level = "second")

  for (col in setdiff(colnames(dat), "y")) {
    shuffled <- dat |> mutate(!!col := sample(.data[[col]]))
    importance[col] <- base_auc -
      roc_auc_vec(truth, predict(model, shuffled, type = "response"), event_level = "second")
  }
  tibble(col = names(importance), base_auc, importance)
}

240 × ~85 ms; ~2.8 MB per replicate, plus the fitted model every replicate scores with

D — Broadcast in, bulk out

# D: refit the severity model on one bootstrap split and predict
# expected loss for every policy in the shared portfolio
task_bootpred <- function(split, portfolio) {
  require(rsample)
  fit <- glm(loss ~ ., data = analysis(split),
             family = Gamma(link = "log"), control = list(maxit = 25))
  as.numeric(predict(fit, newdata = portfolio, type = "response"))
}

400 × ~90 ms · a 38 MB shared portfolio · 800 MB of results on the way back

The hidden ceiling

Amdahl’s law

\[S(n) = \frac{1}{(1 - p) + \dfrac{p}{n}} \;\xrightarrow[n \to \infty]{}\; \frac{1}{1 - p}\]

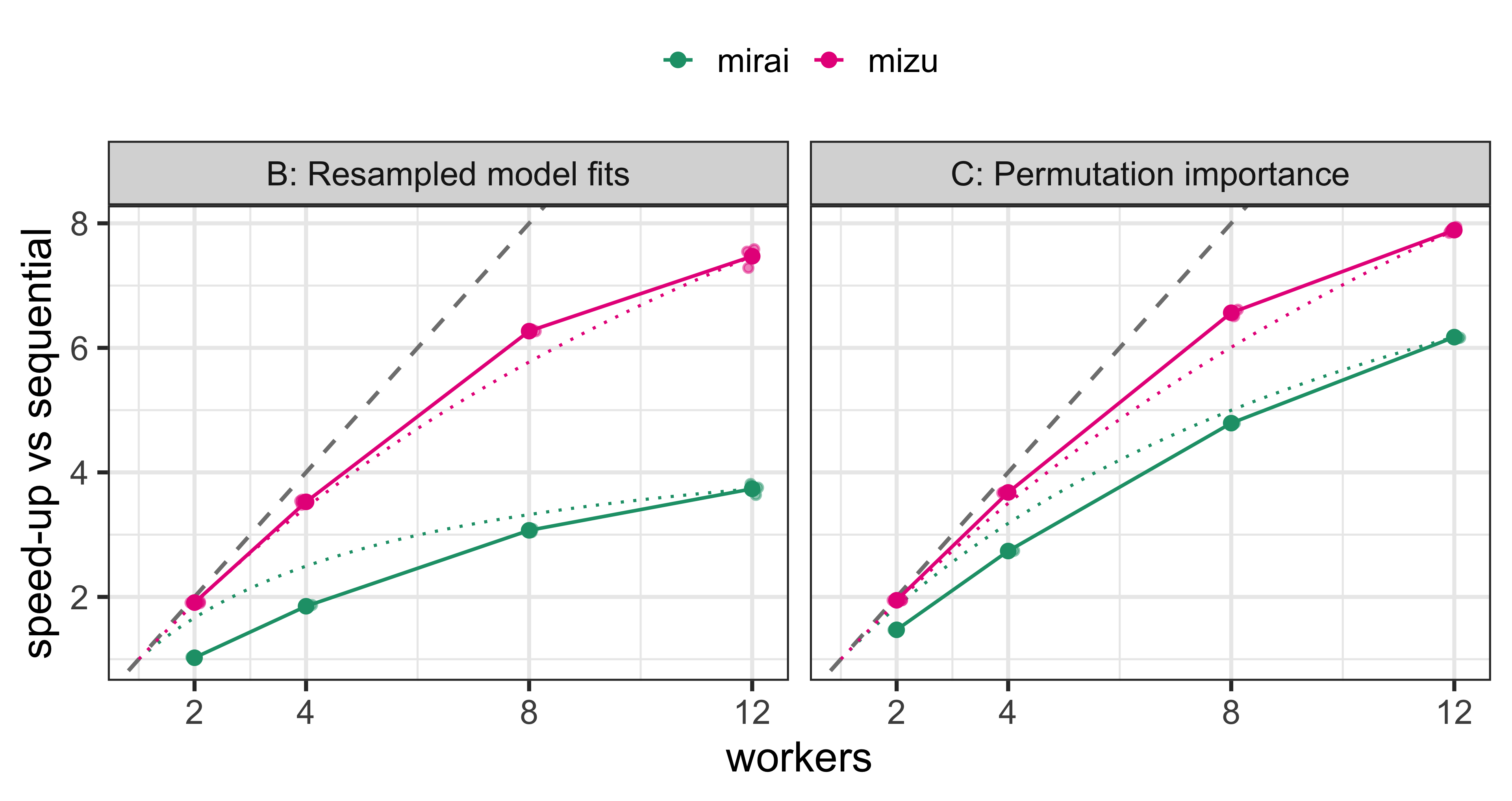

Figure 2

mizu adheres to the law; mirai falls away

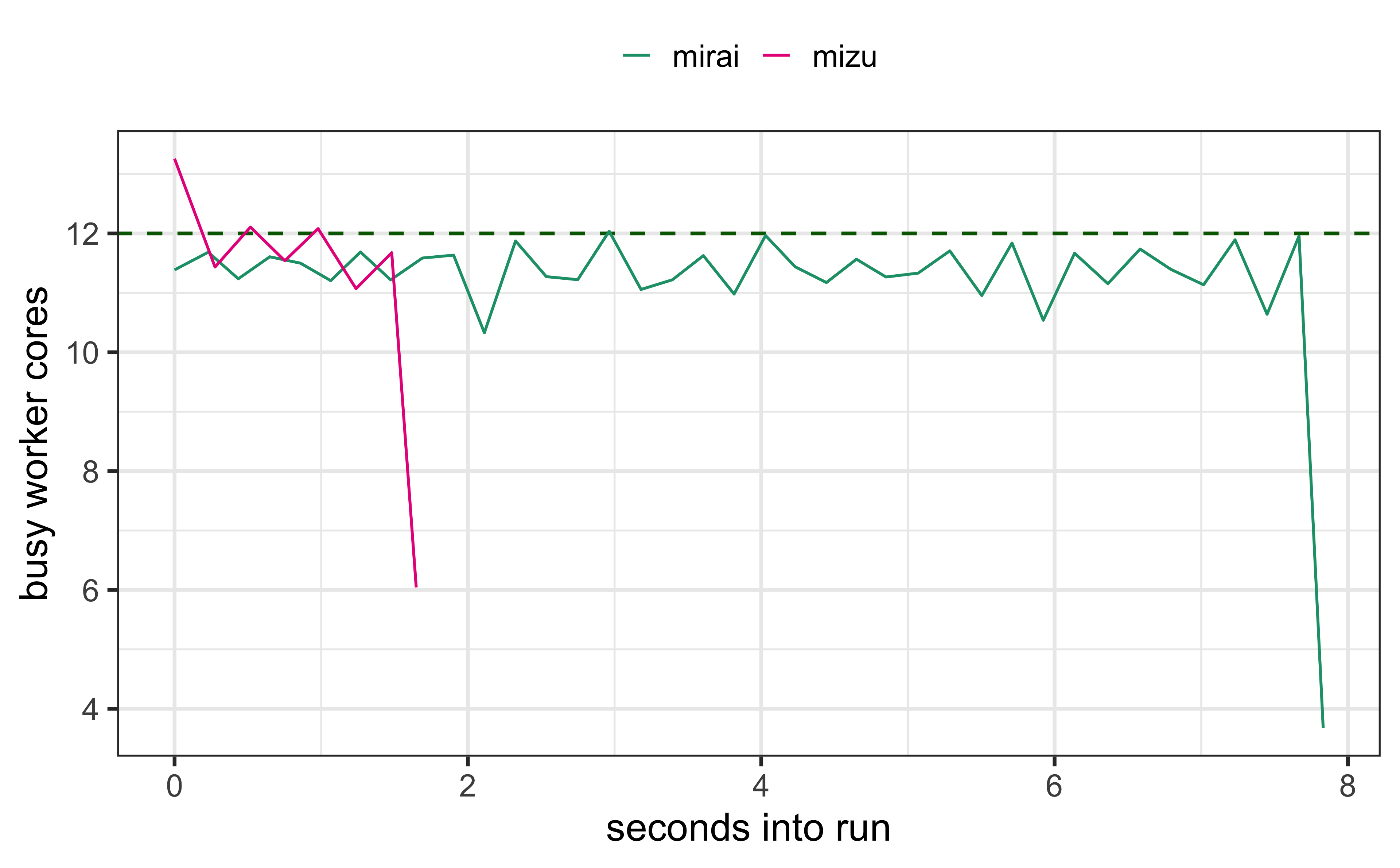

Same busyness, different clocks

Figure 3

Stop waiting. Stream the work. Same code everywhere

Where mirai started

targets hex logotargets
→
crew hex logocrew
→
mirai hex logomirai

mirai began as the engine under crew and targets

Your R session is an event loop

Async is never waiting for a result

blocking waiting… R session 30 min chain session blocked async R session daemon session stays live The task runs off the session — the result lands when it's ready mirai(long_task())

A future you still wait for

# 1 · base R parallel — one blocking call
res <- parallel::parLapply(cl, tasks, fn)

# 2 · future — a handle, but you still wait
f <- future::future(fit(x))
v <- future::value(f)
# promises poll every 100ms

# 3 · mirai — the handle wakes the event loop
m <- mirai::mirai(fit(x), .args = list(x = x))
v <- m[]
# event-driven promises

Push, stream, steal

1 · Push parallel::parLapply() R session worker worker worker chunks serialised in turn — workers idle until theirs arrives 2 · Stream mirai_map() R session dispatcher worker worker worker one task at a time, the moment a worker frees up 3 · Steal mizu_map() §4 shared pages worker worker worker no dispatcher in the loop — workers claim tasks off the pages

Why learn a new map?

cl <- parallel::makeCluster(12, type = "MIRAI")
res <- parallel::parLapply(cl, tasks, fn)

The old interface runs on mirai daemons today. Two things it can’t give you:

  • The overhead stays — parLapply() is the push model: static chunks, blocking collect, §1’s costs in full
  • It can’t say async — no separate collect ([] when you’re ready), no event-driven promises; the call returns when the last task does

type = "MIRAI" is native in R ≥ 4.5 — mirai::make_cluster(12) on older R

One machine

tasks your laptop daemons(3) R session daemon daemon daemon your servers ssh_config() scheduler HPC cluster cluster_config() REST API Kubernetes · cloud http_config() …including Posit Workbench, auto-configured One machine — your session and its daemons ssh_config() · cluster_config() · http_config()

Your own servers, over SSH

tasks your laptop daemons(3) R session daemon daemon daemon your servers ssh_config() scheduler HPC cluster cluster_config() REST API Kubernetes · cloud http_config() …including Posit Workbench, auto-configured Your own servers, over SSH ssh_config() · cluster_config() · http_config()

HPC clusters, through their scheduler

tasks your laptop daemons(3) R session daemon daemon daemon your servers ssh_config() scheduler HPC cluster cluster_config() REST API Kubernetes · cloud http_config() …including Posit Workbench, auto-configured HPC clusters, through their scheduler ssh_config() · cluster_config() · http_config()

Any REST API — cloud, Kubernetes, Workbench

tasks your laptop daemons(3) R session daemon daemon daemon your servers ssh_config() scheduler HPC cluster cluster_config() REST API Kubernetes · cloud http_config() …including Posit Workbench, auto-configured If it has a REST API, it's a launcher ssh_config() · cluster_config() · http_config()

The same mirai_map() call, anywhere —
one line of configuration

Already underneath

mirai is the parallel backend inside tools you may already run

Shiny hex logoShiny
plumber2 hex logoplumber2
purrr hex logopurrr
tidymodels hex logotidymodels
targets hex logotargets
mlr3 hex logomlr3
mirai hex logo mirai

In curl too

The event-driven async built for Shiny is in curl too

curl logocurlmulti_fdset()
httr2 hex logohttr2req_perform_promise()
ellmer hex logoellmerparallel_chat()

Share once

The copy

The constants every task reads:

  • A–D — the dataset every replicate resamples from
  • C — the fitted model every permutation scores with
  • D — the 38 MB portfolio every refit predicts over

Twelve workers → twelve copies

library(mori)

Photo by Zoshua Colah on Unsplash

One copy, many readers

What every task carries

a private copy per worker one shared region same physical pages, per machine tasks R session dispatcher RAM 200 MB each memory worker 1 worker 2 worker 3 Every queued task carries its own 200 MB copy mirai_map(tasks, fn, .args = list(portfolio))

share() once — 200 MB becomes 200 B

a private copy per worker one shared region same physical pages, per machine tasks R session dispatcher RAM 200 B each memory worker 1 worker 2 worker 3 200 bytes per task — the same four tasks share(portfolio)

You just stop hitting the limit

a private copy per worker one shared region same physical pages, per machine tasks R session dispatcher RAM 200 B each memory worker 1 worker 2 worker 3 100× the tasks — headroom to spare share(portfolio)

Same headroom — room for many more tasks

share()

library(mori)
portfolio <- share(portfolio)   # one shared region; 200 B reference

mirai_map(splits, task_bootpred, .args = list(portfolio = portfolio))[]

A shared object is an ordinary R object — downstream code is unchanged

The task itself in shared memory

shared memory R session stages once collects views task list — staged once results — collected as views worker 1 worker 2 worker 3 claim · publish The task list is staged once into shared memory mizu_map(pool, splits, fn)

Workers claim off the shared pages

shared memory R session stages once collects views task list — staged once results — collected as views worker 1 worker 2 worker 3 claim · publish Workers claim elements straight off the shared pages mizu_map(pool, splits, fn)

Results as views

shared memory R session stages once collects views task list — staged once results — collected as views worker 1 worker 2 worker 3 claim · publish Results are published back into shared memory mizu_map(pool, splits, fn)

The main process is out of the data path

mizu_pool() + mizu_map()

library(mizu)
p <- mizu_pool(12)

res <- mizu_map(p, splits, function(split) {
  fit <- fit_glm(analysis(split))
  mizu_map(mizu_current_pool(), predictors, function(v) {
    auc_drop(fit, split, v)     # inner map: same pool, same shared pages
  })
})

The nested map: the inner map runs on the same pool — no second process layer, no new copies; maps compose

The rules you learned were the transport’s

Socket transports taught you Under mizu
Keep tasks coarse Partition at the problem’s natural granularity — staging is per call, not per task
Keep results small Results published in place — collected as zero-copy views
Twelve workers, twelve copies of every constant One shared region — workers read the same pages

A generation of performance instincts answers a cost that no longer exists

Where mizu ends, mirai begins

mizu · one machine Ordinary-sized work parallel at thread granularity — 3 ms tasks, not just 90 ms refits mirai · the reach SSH · HPC · cloud past the machine boundary, the same map code runs unchanged Next — pymizu: Python on the same C core pre-release, API not stable

Never block. Never copy.
install.packages(c("mirai", "mori"))
watch · pak::pak("shikokuchuo/mizu") · pre-release

Photo by Todd Quackenbush on Unsplash

Appendix

The mechanical path

From the code you have to mirai — today, on CRAN:

You have The mirai path
parallel::mclapply(xs, fn) daemons(12) once, then mirai_map(xs, fn)[]
parallel::parLapply(cl, xs, fn) makeCluster(12, type = "MIRAI") — keep parLapply() unchanged
tidymodels fit_resamples() · tuning daemons(12) once — tune’s parallel backend is mirai
purrr::map(xs, fn) purrr::map(xs, in_parallel(fn)) with daemons set
targets pipelines crew::crew_controller_local(workers = 12)

Plus mori::share(x) once for any large read-only constant

Under the map: round-trip costs

Communication overhead, mizu vs mirai, one machine (M4 Pro):

Benchmark mizu mirai Speed-up
Trivial task round trip 0.8 µs 100.5 µs 126×
Pipelined throughput, 1 worker 833,000 tasks/s 9,700 tasks/s 86×
8 MB vector round trip 400 µs 18.4 ms 46×
Parallel map of 2,000 ~10 µs tasks, 4 workers 5.0 ms 218 ms 44×

Microbenchmarks measure the mechanism; workloads A–D measure your work (mirai also reaches remote workers and HPC)
